Introducing InfinitiLine®
– the biggest news to hit gutters.
Stramit InfinitiLine® is a revolutionary gutter, created specifically for Australia’s harsh conditions.
The InfinitiLine® gutter features discreetly concealed slots and a smooth, continuous line to hide the functional features Mother Nature demands, while highlighting the visual aspects that will enhance the home’s façade.
Plus, it is 100% compliant and installs like a standard gutter without the need for spacers.
Check out our new video, sales brochure and technical information below.
To find out more talk to your Stramit account manager today, or find a Stramit reseller.

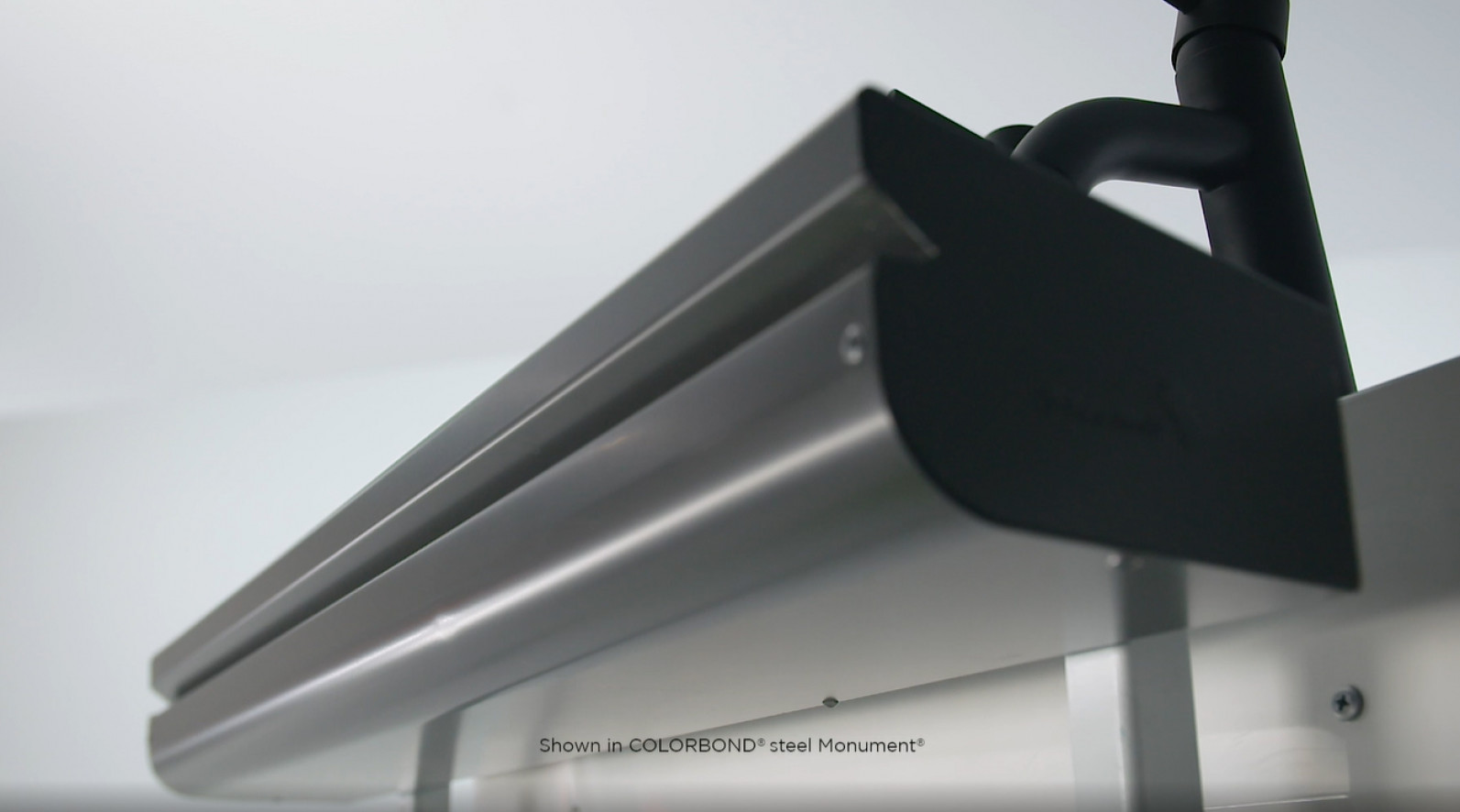

Watch the video

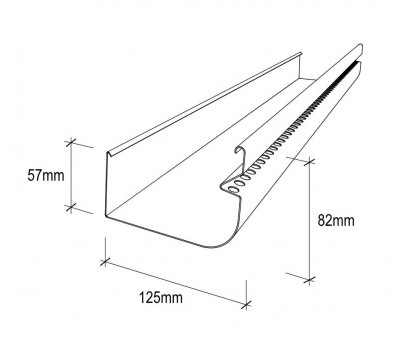

TECHNICAL DRAWING
InfinitiLine® Quad Gutter technical drawing.
For downloadable image files, head to our Resources page.
AVAILABILITY
The InfinitiLine® Premium Gutter is currently available in NSW and the ACT.
INSTALLATION
For full technical and installation instructions, please refer to the NSW Rainwater Technical Product Manual.
Additional tips for installing InfinitiLine® Quad Gutter
Install InifinitiLine® Quad gutter in a similar manner to conventional Quad guttering. Internal and external corners are achieved using matching profile cast components.
Lap joins
- Cut InfinitiLine® Gutter to suit straight run, allowing enough overlap for pop riveting and adequate engagement of the two ends.
- Cut out notch of approximately 25mm in the front top gutter roll of the gutter piece to be inserted.
- Position and slide notched gutter end into the adjoining piece of gutter.
- Rivet and seal as per usual practice.
External and Internal Corners
- Position outer corner gutter bracket over the front of the gutter, aligning recess in corner bracket with recess in front of gutter.
- Swing and lift rear of the corner bracket from underneath gutter and push to locate into position.
- Position inner external bracket so that it can be insert front end (curved portion) first under the recessed potion of gutter.
- Press the rear of the inner bracket down to lock into position. Note that the inner bracket piece has a thinner centre section which allows the inner part to flex and bend slightly to allow it to fit into position.
- Rivet and seal joint prior to tightening butterfly nuts.
