Stramit® Premier 300 Architectural Cladding
Stramit's Premier 300 is the architectural panel of choice for commercial structures.
- Wide cover makes it cost-effective to use
- Durable system of interlocking panels with fully concealed fasteners
- Suitable for horizontal and vertical applications, or any angle in between
Base Material Thickness (mm): 0.55
Finish: COLORBOND®, ZINCALUME®, UniCote® LUX
Standard Steel Standard Steel Standard Steel Standard Steel Standard Steel Standard Steel Standard Steel Standard Steel Standard Steel Standard Steel Standard Steel Standard Steel Standard Steel Standard Steel Standard Steel Standard Steel Standard Steel Standard Steel Standard Steel Standard Steel Standard Steel Ultra Steel Ultra Steel Ultra Steel Ultra Steel Ultra Steel Ultra Steel Ultra Steel Metallic Steel Metallic Steel Metallic Steel Metallic Steel Matt Steel Matt Steel Matt Steel Matt Steel Matt Steel Matt Steel MagnaFlow® MagnaFlow® MagnaFlow® MagnaFlow® MagnaFlow® Other Finishes UniCote® LUX UniCote® LUX UniCote® LUX UniCote® LUX UniCote® LUX UniCote® LUX
COLORBOND® Manor Red®
COLORBOND® steel Bluegum®
COLORBOND® steel Dover White™
COLORBOND® steel Southerly®
COLORBOND® Night Sky®
COLORBOND® Deep Ocean®
COLORBOND® Cottage Green®
COLORBOND® Ironstone®
COLORBOND® Monument®
COLORBOND® Woodland Grey®
COLORBOND® Basalt®
COLORBOND® Classic Cream™
COLORBOND® Jasper®
COLORBOND® Wallaby®
COLORBOND® Gully™
COLORBOND® Pale Eucalypt®
COLORBOND® Dune®
COLORBOND® Shale Grey™
COLORBOND® Evening Haze®
COLORBOND® Paperbark®
COLORBOND® Surfmist®
COLORBOND® Dune® Ultra
COLORBOND® Monument® Ultra
COLORBOND® Surfmist® Ultra
COLORBOND® Woodland Grey® Ultra
COLORBOND® Wallaby® Ultra
COLORBOND® Windspray® Ultra
COLORBOND® Shale Grey™ Ultra
COLORBOND® Galactic™
COLORBOND® Cosmic™
COLORBOND® Rhea™
COLORBOND® Aries™
COLORBOND® Basalt® Matt
COLORBOND® Monument® Matt
COLORBOND® Surfmist® Matt
COLORBOND® Dune® Matt
COLORBOND® Shale Grey™ Matt
COLORBOND® steel Bluegum®
Off White
Armour Grey
Birch
Monolith
Slate Grey
ZINCALUME®
Silver Quartz
Ashwood
Pentagon
Spectrum
Weathered Iron
Zinc Graphite
Certain colour options and finishes may be subject to availability and lead times may vary from site to site. Please contact your local Stramit office to confirm.
Where to Buy
Stramit account holders can buy Stramit® Premier 300 Architectural Cladding from their local Stramit office. We do not sell direct to the public but our products are stocked by retail outlets across Australia.
Availability
This product is available in QLD and the NT. If it’s not manufactured in your area, please contact your local Stramit office to discuss options or suitable alternatives. Lead times may vary depending on location.
News and Case Studies
Check out Stramit’s latest news, product releases and updates, and case studies featuring our quality Aussie-made steel products.
General Information
Adverse Conditions
Compatibility
Handling & Storage
Lengths
National Construction Code Compliance
Registered Designs
Standard Conformance
Testing
Stramit® Premier 300 Architectural Cladding gives excellent durability in almost all locations. However, it is important to choose the correct coating for each application environment. Durability recommendations do vary based on the application of the product in roofing or walling installations.
All building products need to be checked for compatibility with adjacent materials. These checks need to be for both direct contact between materials, and where water runs from one material to another.
The following guidelines generally avoid material incompatibility:
- For zinc-aluminium alloy coated steel, colour coated steel and galvanised steel cladding avoid copper, lead, green or treated timber, stainless steel and mortar or concrete.
- Galvanised steel sheets should not receive drainage from aluminium or any inert materials, such as plastics, glass, glazed tiles, colour coated and zinc-aluminium alloy.
Stramit's roofing and walling products should be handled with care at all times to preserve the product capabilities and quality of the finish.
Packs should always be kept dry and stored above ground level while on site. If the products become wet, they should be separated, wiped and placed in the open to promote drying.
Stramit® Premier 300 Architectural Cladding is supplied cut to length. Manufacturing tolerance on length of product supplied is +0, -15mm.
Stramit products conform to the following Australian standards that are called up in the NCC.
Steel material
- All metallic coated steel complies with AS 1397
- Painted steel product conforms with AS 2728
Roofing / Walling products
- Roofing/walling profiles conform with AS 1562.1, and AS 4040 parts 0, 1, 2 and 3.
- Corrugated roofing conforms with AS 1445
- Wind Load data conforms to AS 1170 part 2, and/or AS 4055
- Fasteners conform with AS 3566
- Installation details are in accordance with the Standards Australia Handbook HB39
Stramit's roofing and walling products are protected in Australia by registered designs.
All Stramit roofing and wall cladding products conform with, or are equivalent to, AS1562.1.
Stramit has in-house, purpose built testing equipment used to design, develop and improve products for the Australian market. Many of our products are tested or witnessed by independent organisations. These include:
- University of Technology, Sydney
- Cyclone Testing Station (James Cook University)
- The University of Sydney, and
- CSIRO.
The ongoing research and development activity ensure we remain at the forefront of innovation, design and consumer information.
Technical Information
Architectural Flashing
Architectural Specification
Fastener Locations
Fasteners
Impact
Materials and Sheet Mass
Minimum Roof Slope
Wind Pressures
Please refer to the Stramit Roof and Wall Flashing Architectural Detailing Design Guide.
The wall cladding shall be 0.55 mm BMT Stramit® Premier 300 Architectural Cladding, in continuous lengths with ribs 15mm high, and a cover of 300mm. Sheeting material shall be protected steel sheet to AS1397 with a minimum yield stress of 300MPa (Grade G300) and an AM100/AZ150 coating with an oven-baked paint film of selected colour, or a plain AM125/AZ150 coating.
The sheeting shall be fixed to the girts in accordance with the manufacturer's recommendations. Suitable fixings in accordance with Australian Standard AS3566, Class 3, shall be used as per manufacturers recommendations. Sheets shall be laid in such a manner that the approved side lap faces away from the prevailing weather.
Flashings shall be supplied in compatible materials as specified, minimum cover of flashing shall be 50mm. All sheeting shall be fixed in a workman like manner, leaving the job clean and weathertight. Repair minor blemishes with touch-up paint supplied by the sheeting manufacturer. All debris (nuts, screws, cuttings, filings etc.) shall be cleaned off daily.
A NATSPEC work section is available for this product. Download

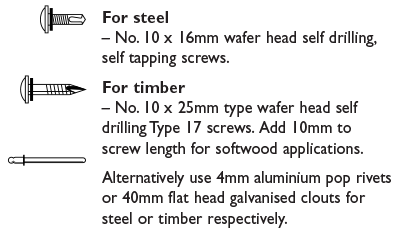

Use one fastener per sheet at each support placed in top of the profile outboard of the interlock rib.
All fasteners should conform to AS3566 – Class 3 and be compatible with the cladding material to steel supports.
For wall areas likely to be subject to human impact, sheeting spans should be reduced. Impact loads will vary considerably and these are not prescribed in Australian Standards. A maximum span of 1200mm is suggested for such areas, but this should be adjusted dependant upon the exposure and importance of the application
Stramit® Premier 300 wall sheeting is manufactured from G300 colour coated steel or zinc-aluminium alloy coated steel. In some locations galvanised and severe environment colour coated steel may be available by arrangement.
Colour coated steels are in accordance with AS2728 – Category 3 and, for the substrate, with AS1397. Zinc-aluminium alloy coated AZ150, aluminium-zinc-magnesium alloy coated AM100/AM125 and galvanised Z450 conform to AS1397.
Stramit® Premier 300 Architectural Cladding is not suitable for roofing.
Derived from testing, the following tables give the wind load resistance for both serviceability and strength limit states.
Values only valid for use with steel support members of 1.5mm or thicker.
Installation Information
Stramit's cladding can be easily cut, where required, using a power saw with a cold cut saw blade or a power nibbler and, for localised cutting, tin snips. Avoid the use of abrasive discs as these can cause burred edges and coating damage. Please dispose of any off-cuts carefully and thoughtfully.
Commence installation from the bottom of the area to be covered:
- Use a string line to correctly position starter clips which are attached using the recommended fastener to the stud framing.
- Hinge the bottom edge of the profile under the clips and swing the panel up against the wall frame.
- Use the recommended fasteners to attach the top of the panel to the frame. Hint: Maintain upward pressure during this operation to ensure full engagement with the clips.
- Hinge the next panel in under the profiled groove in the top of the first panel, swing up and attach as before.
- Continue installing sheets to the top of the wall.
Below are some handy hints and tips to achieve maximum life from your COLORBOND® and ZINCALUME® finished products.
- In areas of little rainfall, products should be cleaned regularly.
- Brick cleaning acid should not come into contact with steel fascia, gutter, or roofing and walling.
- Never immerse these products in sand, soil or concrete.
- Do not use touch up spray can paint on COLORBOND® steel.
- Remove metal debris from cutting and/or drilling to avoid swarf damage.
- Prior to installation, keep bundled material dry.
- Prepainted metal roofing components should be stored in the shade as the protective plastic film will become difficult to remove if it is exposed to direct sunlight.
- Make sure materials made of different metal, such as copper and lead, do not make contact with these products, and water does not run from one to the other.
- Roofing and guttering should be free draining and free from dirt and leaves.
